G1552 SERIES
Product Description

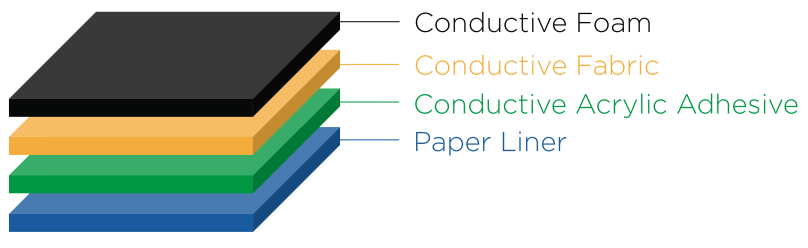

G1552 Series single coated gasket tape features an electronically conductive black foam laminated with a conductive black fabric and a uniquely electrically conductive pressure sensitive acrylic adhesive. The conductive fabric offers improved handling characteristics while the unique adhesive can provide excellent adhesion on a wide variety of substrates such as metal foil and stainless steel.
Features
✔ Good Adhesion
✔ Excellent Conductivity
✔ Easy Die-Cut
✔ RoHS Compliant & Halogen Free
Applications
G1552 Series tape is typically used for applications requiring excellent conductivity, compressibility and resilience to secure a reliable conductive connection for ESD grounding or form a close conductive enclosure to achieve good EMI shielding performance
Typical Properties
| Part Number | G1552 | Test Method |
| Available Thickness (mm) | 0.3～4.0 | ASTM D3652 |
| Color | Black | – |
| Type of backing | Conductive Gasket + Conductive Fabric | – |
| Type of adhesive | Conductive Acrylic-based | – |
| Density of Foam (kg/m3) | 35 | ASTM D1622 |
| 1800 Peel to Steel
(g/inch @20min RT) |
>1000 | ASTM D3330 |
| Volume Resistance (Ω/inch2) | 0.05 | MIL-G-83528 |
| Adhesive Surface Resistance (Ω/□) | 0.1 | MIL-G-83528 |
| Shielding Effectiveness
@100MHz – 3GHz (dB) |
>60 | ASTM D4935 |
| Operating Temperature (°C) | -20～85 | – |
| Standard Size (mm x m) | 1000*20 | – |
