C1701 SERIES
Product Description

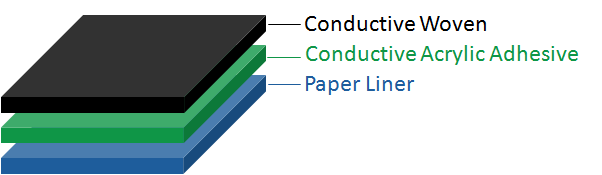

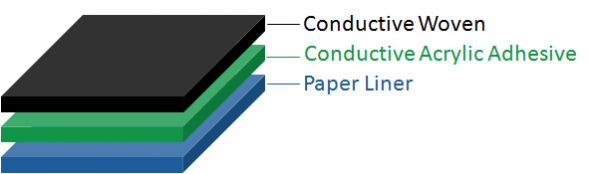

C1701 Series tape consists of Cu/Ni plated conductive polyester fabric and unique electrically conductive pressure-sensitive acrylic adhesives. C1701 Series tape is conductive through the thickness (Z-axis) and in the plane of the adhesive (XY-Axis).
Features
✔ Good Adhesion
✔ Excellent Conductivity
✔ Easy Die-Cut
✔ RoHS Compliant & Halogen Free
Applications
C1701 Series tape is typically used in many applications commonly served by metal foil shielding tapes, such as grounding and EMI shielding in equipment, components, shielding rooms, etc. The unique metalized fabric backing offers the additional benefits of excellent flexibility, conformability and strength. The fabric backing also offers superior tear resistance.
Typical Properties
| Part Number | C1701-030 | C1701-050 | C1701-080 | C1701-100 | C1701-150 | Test Method |
| Available Thickness (mm) | 0.03 | 0.05 | 0.08 | 0.10 | 0.15 | ASTM D3652 |
| Color | Grey | – | ||||
| Type of backing | Conductive Woven | – | ||||
| Type of adhesive | Acrylic-based | – | ||||
| 1800 Peel to Steel
(g/inch @20min RT) |
1000 | 1500 | 1700 | 1800 | 1800 | ASTM D3330 |
| Volume Resistance (Ω/inch2) | 0.02 | 0.02 | 0.05 | 0.05 | 0.05 | MIL-G-83528 |
| Backing Surface Resistance (Ω/□) | 0.02 | 0.02 | 0.02 | 0.02 | 0.02 | MIL-G-83528 |
| Adhesive Surface Resistance (Ω/□) | 0.1 | 0.1 | 0.1 | 0.1 | 0.1 | MIL-G-83528 |
| Shielding Effectiveness
@100MHz – 3GHz (dB) |
>60 | ASTM D4935 | ||||
| Operating Temperature (°C) | -20～85 | – | ||||
| Standard Size (mm x m) | 1050*50 | – | ||||
