A2901 SERIES
Product Description

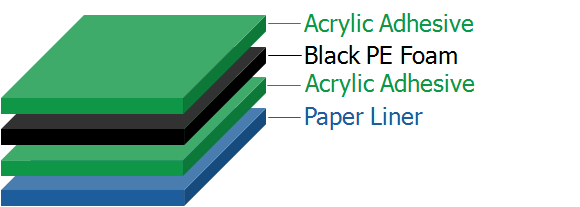

A2901 Series tape features a double coated adhesive with black PE foam coated with pressure sensitive acrylic adhesive. The PE foam layer provides excellent workability and handling while the unique adhesive has excellent adhesion to wide variety of substrates.
Features
✔ High Bond Strength
✔ Closed Cell Foam
✔ Easy Die-Cut
✔ RoHS Compliant & Halogen Free
Applications
A2901 Series tape can be used in a wide range of electronic components bonding such as lens bonding and LCM attachment along with other bonding applications where impact resistance, high strength and waterproof bonding are needed.
Typical Properties
| Part Number | A2901-010 | A2901-015 | A2901-020 | A2901-025 | A2901-030 | A2901-040 | A2901-100 | Test Method |
| Available Thickness (mm) | 0.10 | 0.15 | 0.20 | 0.25 | 0.30 | 0.40 | 1.00 | ASTM D3652 |
| Color | Black | – | ||||||
| Type of backing | Black PE Foam | – | ||||||
| Type of adhesive | Acrylic-based | – | ||||||
| 1800 Peel to Steel
(gf/inch @1hr RT) |
1200 | 1600 | 2000 | 2000 | 2500 | 3000 | 2500 | ASTM D3330 |
| Tensile Strength (gf/inch, MD) | 2400 | 2500 | 2500 | 2000 | 2000 | 2000 | 2000 | ISO 1798 |
| Elongation (%, MD) | 250 | 220 | 220 | 220 | 220 | 220 | 250 | ISO 1798 |
| Waterproof Class | IPX 7 | Internal | ||||||
| Operating Temperature (°C) | -20～85 | – | ||||||
| Standard Size (mm x m) | 1050*50 | – | ||||||
