A2801 SERIES
Product Description

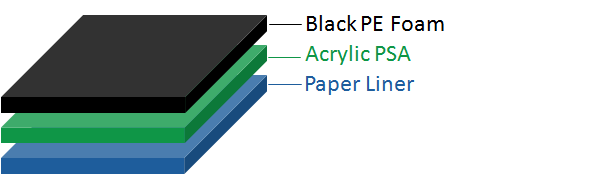

A2801 Series tape features a single coated adhesive with black PE foam and pressure sensitive acrylic adhesive. The PE foam layer provides excellent damping performance and workability while the unique adhesive has excellent adhesion to wide variety of substrates.
Features
✔ Good Adhesion
✔ Closed Cell Foam
✔ Easy Die-Cut
✔ RoHS Compliant & Halogen Free
Applications
A2801 Series tape can be used in a wide range of gap filling and gasket that require shock absorption that temperature resistance, moisture resistance and shock absorption are required.
Typical Properties
| Part Number | A2801-010 | A2801-015 | A2801-020 | A2801-030 | Test Method |
| Available Thickness (mm) | 0.10 | 0.15 | 0.20 | 0.30 | ASTM D3652 |
| Color | Black | – | |||
| Type of backing | Black PE Foam | – | |||
| Type of adhesive | Acrylic-based | – | |||
| Thickness of Backing | 0.08 | 0.10 | 0.15 | 0.25 | ASTM D3652 |
| Thickness of PSA | 0.02 | 0.05 | 0.05 | 0.05 | ASTM D3652 |
| 1800 Peel to Steel (gf/inch @1hr RT) | 1300 | 1500 | 1500 | 1800 | ASTM D3330 |
| Tensile Strength (MD, gf/inch) | 1600 | 1600 | 2000 | 2000 | ISO 1798 |
| Elongation (MD, %) | 200 | 200 | 220 | 220 | ISO 1798 |
| Waterproof Class | IPX 7 | Internal | |||
| Operating Temperature (°C) | -20～85 | – | |||
| Standard Size (mm x m) | 1000*50 | – | |||
