A2302 SERIES
Product Description

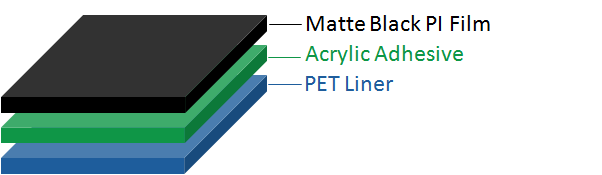

A2302 Series tape features a single coated adhesive tape with matte black polyimide film coated with pressure sensitive acrylic adhesive. The PI layer provides excellent workability, handling performance and high-temperature resistance while the unique adhesive has excellent adhesion on a wide variety of substrates.
Features
✔ High Temperature Resistance
✔ Good Adhesion
✔ Ultra-Thin
✔ Easy Die-Cut
✔ RoHS Compliant & Halogen Free
Applications
A2302 Series tape is typically used for insulation and protection for shielding cans and other components in high temperature environments. Also used for insulation and light shielding in FPC and LCD modules.
Typical Properties
| Part Number | A2302-010 | A2302-015 | A2302-020 | A2302-030 | A2302-050 | Test Method |
| Available Thickness (mm) | 0.010 | 0.015 | 0.020 | 0.030 | 0.050 | ASTM D3652 |
| Backing Thickness (mm) | 0.005 | 0.008 | 0.012 | 0.012 | 0.025 | ASTM D3652 |
| Color | Black | – | ||||
| Type of backing | Matte Black PI Film | – | ||||
| Type of adhesive | Acrylic-based | – | ||||
| 1800 Peel to Steel
(g/inch @20min RT) |
600 | 600 | 650 | 700 | 800 | ASTM D3330 |
| Backing Surface Resistivity (Ω) | 107 | ASTM D257 | ||||
| Gloss (GU) | 2+/-1 | ASTM D2457 | ||||
| CIE (L * a * b) | L: 23～27， a: -1～1，b: -2～0 | ISO 7724 | ||||
| Operating Temperature (°C) | -20～180, Intermittent up to 300 | – | ||||
| Standard Size (mm x m) | 500*100 | – | ||||
