A2201 SERIES
Product Description

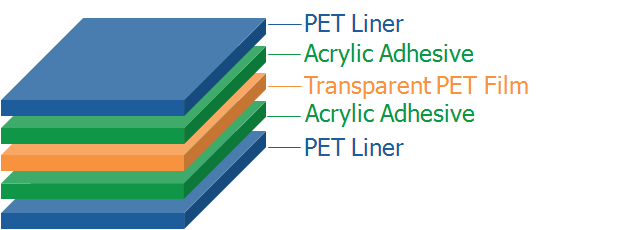

A2201 Series tape features a double coated adhesive with transparent PET film coated with pressure sensitive acrylic adhesive. The PET layer provides excellent workability and handling performance while the unique adhesive has excellent adhesion to wide variety of substrates.
Features
✔ Good Adhesion
✔ Ultra-Thin
✔ Easy Die-Cut
✔ Excellent workability
✔ RoHS Compliant & Halogen Free
Applications
A2201 Series tape is typically used in adhering LCD backlight, reflection and diffusion films together. also can be used to adhere parts around LED and FPC modules.
Typical Properties
| Part Number | A2201-003 | A2201-005 | A2201-007 | A2201-010 | A2201-020 | A2201-030 | Test Method |
| Available Thickness (mm) | 0.0035 | 0.005 | 0.007 | 0.010 | 0.020 | 0.030 | ASTM D3652 |
| Color | Transparent | – | |||||
| Type of backing | PET Film | – | |||||
| Type of adhesive | Acrylic-based | – | |||||
| Type of liner | PET Liner | – | |||||
| 1800 Peel to Steel
(g/inch @20min RT) |
350 | 500 | 850 | 1000 | 1000 | 1500 | ASTM D3330 |
| Operating Temperature (°C) | -20～120 | – | |||||
| Standard Size (mm x m) | 1000*100 | – | |||||
