A2102 SERIES
Product Description

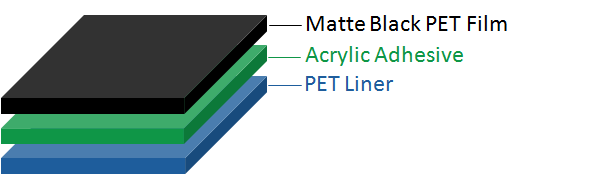

A2102 Series tape features a single coated adhesive tape with matte black PET film coated with pressure sensitive acrylic adhesive. The PET layer provides excellent workability and handling performance while the unique adhesive has excellent adhesion on a wide variety of substrates.
Features
✔ Good Adhesion
✔ Ultra-Thin
✔ Easy Die-Cut
✔ RoHS Compliant & Halogen Free
Applications
A2102 Series tape is designed for attaching graphite without affecting the graphite thermal conductivity and attaching ferrite as protective film tape. Also used for insulation and light shielding in FPC and LCD modules.
Typical Properties
| Part Number | A2102-005 | A2102-008 | A2102-010 | A2102-020 | A2102-030 | A2102-050 | Test Method |
| Available Thickness (mm) | 0.005 | 0.008 | 0.01 | 0.02 | 0.03 | 0.05 | ASTM D3652 |
| Color | Black | – | |||||
| Type of backing | Matte Black PET Film | – | |||||
| Type of adhesive | Acrylic-based | – | |||||
| 1800 Peel to Steel
(g/inch @20min RT) |
300 | 450 | 600 | 700 | 850 | 1000 | ASTM D3330 |
| Gloss (GU) | 2+/-1 | ASTM D2457 | |||||
| CIE (L * a * b) | L: 23～27， a: -1～1，b: -2～0 | ISO 7724 | |||||
| Operating Temperature (°C) | -20～120 | – | |||||
| Standard Size (mm x m) | 600*100 | – | |||||
