A2101 SERIES
Product Description

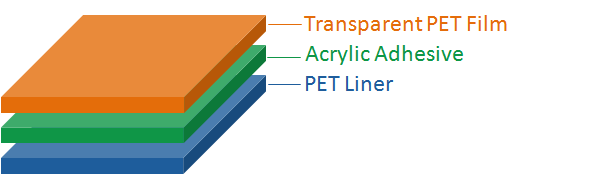

A2101 Series tape features a single coated adhesive tape with transparent PET film coated with pressure sensitive acrylic adhesive. The PET layer provides excellent workability and handling performance while the unique adhesive has excellent adhesion on a wide variety of substrates.
Features
✔ Good Adhesion
✔ Easy Die-Cut
✔ RoHS Compliant
✔ Halogen Free
Applications
A2101 Series tape is designed for attaching with metal/plastic components in electronic devices as the insulation and protective film, which include battery insulation and packing, transformer insulation, PCB/LCD module insulation and cable wrapping.
Typical Properties
| Part Number | A2101-005 | A2101-010 | A2101-020 | A2101-030 | A2101-100 | Test Method |
| Available Thickness (mm) | 0.005 | 0.01 | 0.02 | 0.03 | 0.1 | ASTM D3652 |
| Color | Transparent | – | ||||
| Type of backing | Transparent PET Film | – | ||||
| Type of adhesive | Acrylic-based | – | ||||
| Thickness of backing | 0.002 | 0.005 | 0.01 | 0.01 | 0.08 | ASTM D3652 |
| 1800 Peel to Steel
(g/inch @20min RT) |
400 | 450 | 600 | 850 | 1200 | ASTM D3330 |
| Operating Temperature (°C) | -20～120 | – | ||||
| Standard Size (mm x m) | 1000*50/100 | – | ||||
